The Twelve Days of Christmas, GNU make style

Well, it’s Christmas Day in the States today, and while we’re all recovering from the gift-opening festivities, I thought this would be the perfect time for a bit of fun with GNU make. And what better subject matter than the classic Christmas carol “The Twelve Days of Christmas”? Its repetitive structure is perfect for demonstrating how to use several of GNU make’s built-in functions for iteration, selection and sorting. This simple makefile prints the complete lyrics to the song:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
L01=Twelve drummers drumming,
L02=Eleven pipers piping,
L03=Ten lords-a-leaping,
L04=Nine ladies dancing,
L05=Eight maids-a-milking,
L06=Seven swans-a-swimming,
L07=Six geese-a-laying,
L08=Five golden rings,
L09=Four calling birds,
L10=Three french hens,
L11=Two turtle doves, and
L12=A partridge in a pear tree!
LINES=12 11 10 09 08 07 06 05 04 03 02 01
DAYS=twelfth eleventh tenth ninth \
eighth seventh sixth fifth \
fourth third second first
$(foreach n,$(LINES),\
$(if $(X),$(info ),$(eval X=X))\
$(info On the $(word $n,$(DAYS)) day of Christmas,)\
$(info my true love gave to me)\
$(foreach line,$(wordlist $n,12,$(sort $(LINES))),\
$(info $(L$(line)))))
all: ; @:

By count, most of the lines here just declare variables, one for each item mentioned in the song. Note how the items are ordered: the last item added is given the lowest index. That means that to construct each verse we simply enumerate every item in the list, in order, starting with the new item in each verse.

Line 18 is where the real meat of the makefile begins. Here we use GNU make’s foreach function to iterate through the verses. $(foreach) takes three arguments: a name for the iteration variable, a space-separated list of words to assign to the iteration variable in turn, and a body of text to expand repeatedly, once for each word in the list. Here, the list of words is given by LINES, which lists the starting line for each verse, in order — that is, the first verse starts from line 12, the second from line 11, etc. The text to expand on each iteration is all the text on lines 19-23 of the makefile — note the use of backslashes to continue each line to the next.

Line 19 uses several functions to print a blank line before starting the next verse, if we’ve printed a verse already: the $(if) function, which expands its second argument if its first argument is non-empty, and its third argument if its first argument is empty; the $(info) function to print a blank line; and the $(eval) function to set the flag variable. The first time this line is expanded, X does not exist, so it expands to an empty string and the $(if) picks the “else” branch. After that, X has a value, so the $(if) picks the “then” branch.

Lines 20 and 21 again use $(info) to print output — this time the prelude for the verse, like “On the first day of Christmas, my true love gave to me”. The ordinal for each day is pulled from DAYS using the $(word) function, which extracts a specified word, given by its first argument, from the space-separated list given as its second argument. Here we’re using n, the iteration variable from our initial $(foreach) as the selector for $(word).

Line 22 uses $(foreach) again, this time to iterate through the lines in the current verse. We use line as the iteration variable. The list of words is given again by LINES except now we’re using $(sort) to reverse the order, and $(wordlist) to select a subset of the lines. $(wordlist) takes three arguments: the index of the first word in the list to select, the index of the last word to select, and a space-separated list of words to select from. The indices are one-based, not zero-based, and $(wordlist) returns all the words in the given range. The body of this $(foreach) is just line 23, which uses $(info) once more to print the current line of the current verse.

Line 25 has the last bit of funny business in this makefile. We have to include a make rule in the makefile, or GNU make will complain *** No targets. Stop. after printing the lyrics. If we simply declare a rule with no commands, like all:, GNU make will complain Nothing to be done for `all’.. Therefore, we define a rule with a single “no-op” command that uses the bash built-in “:” to do nothing, combined with GNU make’s @ prefix to suppress printing the command itself.

And that’s it! Now you’ve got some experience with several of the built-in functions in GNU make — not bad for a Christmas day lark:

  • $(eval) for dynamic interpretation of text as makefile content
  • $(foreach), for iteration
  • $(if), for conditional expansion
  • $(info), for printing output
  • $(sort), for sorting a list
  • $(word), for selecting a single word from a list
  • $(wordlist), for selecting a range of words from a list

Now — where’s that figgy pudding? Merry Christmas!

post

UPDATE: SCons is Still Really Slow

A while back I posted a series of articles exploring the scalability of SCons, a popular Python-based build tool. In a nutshell, my experiments showed that SCons exhibits roughly quadratic growth in build runtimes as the number of targets increases:

Recently Dirk Baechle attempted to rebut my findings in an entry on the SCons wiki: Why SCons is not slow. I thought Dirk made some credible suggestions that could explain my results, and he did some smart things in his effort to invalidate my results. Unfortunately, his methods were flawed and his conclusions are invalid. My original results still stand: SCons really is slow. In the sections that follow I’ll share my own updated benchmarks and show where Dirk’s analysis went wrong.

Test setup

As before, I used genscons.pl to generate sample builds ranging from 2,000 to 50,000 targets. However, my test system was much beefier this time:

2013 2010
OS Linux Mint 14 (kernel version 3.5.0-17-generic) RedHat Desktop 3 (kernel version 2.4.21-58.ELsmp)
CPU Quad 1.7GHz Intel Core i7, hyperthreaded Dual 2.4GHz Intel Xeon, hyperthreaded
RAM 16 GB 2 GB
HD SSD (unknown)
SCons 2.3.0 1.2.0.r3842
Python 2.7.3 (system default) 2.6.2

Before running the tests, I rebooted the system to ensure there were no rogue processes consuming memory or CPU. I also forced the CPU cores into “performance” mode to ensure that they ran at their full 1.7GHz speed, rather than at the lower 933MHz they switch to when idle.

Revisiting the original benchmark

I think Dirk had two credible theories to explain the results I obtained in my original tests. First, Dirk wondered if those results may have been the result of virtual memory swapping — my original test system had relatively little RAM, and SCons itself uses a lot of memory. It’s plausible that physical memory was exhausted, forcing the OS to swap memory to disk. As Dirk said, “this would explain the increase of build times” — you bet it would! I don’t remember seeing any indication of memory swapping when I ran these tests originally, but to be honest it was nearly 4 years ago and perhaps my memory is not reliable. To eliminate this possibility, I ran the tests on a system with 16 GB RAM this time. During the tests I ran vmstat 5, which collects memory and swap usage information at five second intervals, and captured the result in a log.

Next, he suggested that I skewed the results by directing SCons to inherit the ambient environment, rather than using SCons’ default “sanitized” environment. That is, he felt I should have used env = Environment() rather than env = Environment(ENV = os.environ). To ensure that this was not a factor, I modified the tests so that they did not inherit the environment. At the same time, I substituted echo for the compiler and other commands, in order to make the tests faster. Besides, I’m not interested in benchmarking the compiler — just SCons! Here’s what my Environment declaration looks like now:

env = Environment(CC = 'echo', AR = 'echo', RANLIB = 'echo')

With these changes in place I reran my benchmarks. As expected, there was no change in the outcome. There is no doubt: SCons does not scale linearly. Instead the growth is polynomial, following an n1.85 curve. And thanks to the the vmstat output we can be certain that there was absolutely no swapping affecting the benchmarks. Here’s a graph of the results, including an n1.85 curve for comparison — notice that you can barely see that curve because it matches the observed data so well!

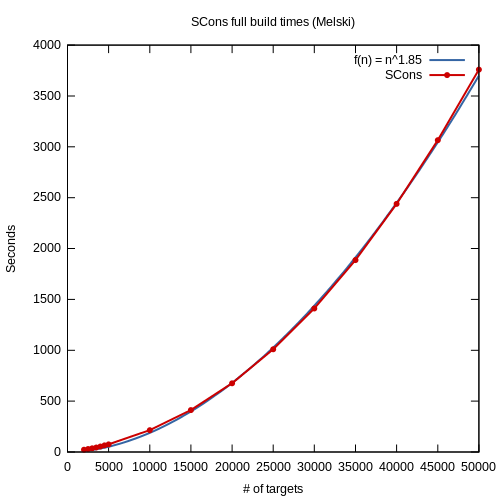

SCons full build runtime - click for larger view

For comparison, I used the SCons build log to make a shell script that executes the same series of echo commands. At 50,000 targets, the shell script ran in 1.097s. You read that right: 1.097s. Granted, the shell script doesn’t do stuff like up-to-date checks, etc., but still — of the 3,759s average SCons runtime, 3,758s — 99.97% — is SCons overhead.

I also created a non-recursive Makefile that “builds” the same targets with the same echo commands. This is a more realistic comparison to SCons — after all, nobody would dream of actually controlling a build with a straight-line shell script, but lots of people would use GNU make to do it. With 50,000 targets, GNU make ran for 82.469s — more than 45 times faster than SCons.

What is linear scaling?

If the performance problems are so obvious, why did Dirk fail to see them? Here’s a graph made from his test results:

SCons full build runtime, via D. Baechle - click for full size

Dirk says that this demonstrates “SCons’ linear scaling”. I find this statement baffling, because his data clearly shows that SCons does not scale linearly. It’s simple, really: linear scaling just means that the build time increases by the same amount for each new target you add, regardless of how many targets you already have. Put another way, it means that the difference in build time between 1,000 targets and 2,000 targets is exactly the same as the difference between 10,000 and 11,000 targets, or between 30,000 and 31,000 targets. Or, put yet another way, it means that when you plot the build time versus the number of targets, you should get a straight line with no change in slope at any point. Now you tell me: does that describe Dirk’s graph?

Here’s another version of that graph, this time augmented with a couple additional lines that show what the plot would look like if SCons were truly scaling linearly. The first projection is based on the original graph from 2,500 to 4,500 targets — that is, if we assume that SCons scales linearly and that the increase in build time between 2,500 and 4,500 targets is representative of the cost to add 2,000 more targets, then this line shows us how we should expect the build time to increase. Similarly, the second projection is based on the original graph between 4,500 and 8,500 targets. You can easily see that the actual data does not match either projection. Furthermore you can see that the slope of these projections is increasing:

SCons full build runtime with linear projections, via D. Baechle - click for full size

This shows the importance of testing at large scale when you’re trying to characterize the scalability of a system from empirical data. It can be difficult to differentiate polynomial from logarithmic or linear at low scales, especially once you incorporate the constant factors — polynomial algorithms can sometimes even give better absolute performance for small inputs than linear algorithms! It’s not until you plot enough data points at large enough values, as I’ve done, that it becomes easy to see and identify the curve.

What does profiling tell us?

Next, Dirk reran some of his tests under a profiler, on the very reasonable assumption that if there was a performance problem to be found, it would manifest in the profiling data — surely at least one function would demonstrate a larger-than-expected growth in runtime. Dirk only shared profiling data for two runs, both incremental builds, at 8,500 and 16,500 targets. That’s unfortunate for a couple reasons. First, the performance problem is less apparent on incremental builds than on full builds. Second, with only two datapoints it is literally not possible to determine whether growth is linear or polynomial. The results of Dirk’s profiling was negative: he found no “significant difference or increase” in any function.

Fortunately it’s easy to run this experiment myself. Dirk used cProfile, which is built-in to Python. To profile a Python script you can inject cProfile from the command-line, like this: python -m cProfile scons. Just before Python exits, cProfile dumps timing data for every function invoked during the run. I ran several full builds with the profiler enabled, from 2,000 to 20,000 targets. Then I sorted the profiling data by function internal time (time spent in the function exclusively, not in its descendents). In every run, the same two functions appeared at the top of the list: posix.waitpid and posix.fork. To be honest this was a surprise to me — previously I believed the problem was in SCons’ Taskmaster implementation. But I can’t really argue with the data. It makes sense that SCons would spend most of its time running and waiting for child processes to execute, and even that the amount of time spent in these functions would increase as the number of child processes increases. But look at the growth in runtimes in these two functions:

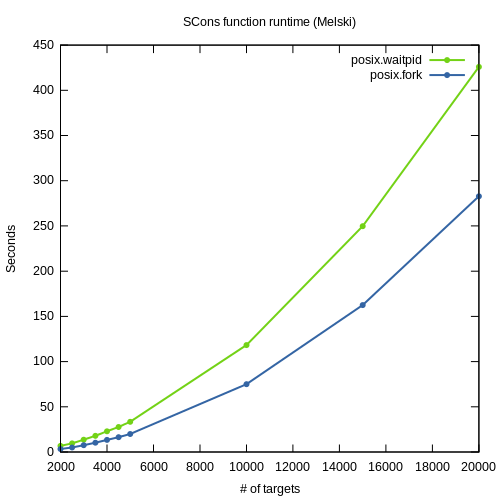

SCons full build function time, top two functions - click for full size

Like the overall build time, these curves are obviously non-linear. Armed with this knowledge, I went back to Dirk’s profiling data. To my surprise, posix.waitpid and posix.fork don’t even appear in Dirk’s data. On closer inspection, his data seems to include only a subset of all functions — about 600 functions, whereas my profiling data contains more than 1,500. I cannot explain this — perhaps Dirk filtered the results to exclude functions that are part of the Python library, assuming that the problem must be in SCons’ own code rather than in the library on which it is built.

This demonstrates a second fundamental principle of performance analysis: make sure that you consider all the data. Programmers’ intuition about performance problems is notoriously bad — even mine! — which is why it’s important to measure before acting. But measuring won’t help if you’re missing critical data or if you discard part of the data before doing any analysis.

Conclusions

On the surface, performance analysis seems like it should be simple: start a timer, run some code, stop the timer. Done correctly, performance analysis can illuminate the dark corners of your application’s performance. Done incorrectly — and there are many ways to do it incorrectly — it can lead you on a wild goose chase and cause you to squander resources fixing the wrong problems.

Dirk Baechle had good intentions when he set out to analyze SCons performance, but he made some mistakes in his process that led him to an erroneous conclusion. First, he didn’t run enough large-scale tests to really see the performance problem. Second, he filtered his experimental data in a way that obscured the existence of the problem. But perhaps his worst mistake was to start with a conclusion — that there is no performance problem — and then look for data to support it, rather than starting with the data and letting it impartially guide him to an evidence-based conclusion.

To me the evidence seems indisputable: SCons exhibits roughly quadratic growth in runtimes as the number of build targets increases, rendering it unusable for large-scale software development (tens of thousands of build outputs). There is no evidence that this is a result of virtual memory swapping. Profiling suggests a possible pair of culprits in posix.waitpid and posix.fork. I leave it to Dirk and the SCons team to investigate further; in the meantime, you can find my test harness and test results in my GitHub repo. If you can see a flaw in my methodology, sound off in the comments!

post

What’s new in GNU make 4.0?

After a little bit more than three years, the 4.0 release of GNU make finally arrived in October. This release packs in a bunch of improvements across many functional areas including debuggability and extensibility. Here’s my take on the most interesting new features.

Output synchronization

For the majority of users the most exciting new feature is output synchronization. When enabled, output synchronization ensures that the output of each job is kept distinct, even when the build is run in parallel. This is a tremendous boon to anybody that’s had the misfortune of having to diagnose a failure in a parallel build. This simple Makefile will help demonstrate the feature:

1
2
3
4
5
6
7
8
9
10
11
12
all: a b c
a:
@echo COMPILE a
@sleep 1 && echo a, part 1
@sleep 1 && echo a, part 2
@sleep 2 && echo a, part 3
b c:
@echo COMPILE $@
@sleep 1 && echo $@, part 1
@sleep 1 && echo $@, part 2
@sleep 1 && echo $@, part 3

Now compare the output when run serially, when run in parallel, and when run in parallel with –output-sync=target:

Serial Parallel Parallel with –output-sync=target
$ gmake
COMPILE a
a, part 1
a, part 2
a, part 3
COMPILE b
b, part 1
b, part 2
b, part 3
COMPILE c
c, part 1
c, part 2
c, part 3
$ gmake -j 4
COMPILE a
COMPILE b
COMPILE c
b, part 1
a, part 1
c, part 1
b, part 2
a, part 2
c, part 2
b, part 3
c, part 3
a, part 3
$ gmake -j 4 --output-sync=target
COMPILE c
c, part 1
c, part 2
c, part 3
COMPILE b
b, part 1
b, part 2
b, part 3
COMPILE a
a, part 1
a, part 2
a, part 3

Here you see the classic problem with parallel gmake build output logs: the output from each target is mixed up with the output from other targets. With output synchronization, the output from each target is kept separate, not intermingled. Slick! The output doesn’t match that of the serial build, unfortunately, but this is still a huge step forward in usability.

The provenance of this feature is especially interesting, because the idea can be traced directly back to me — in 2009, I wrote an article for CM Crossroads called Descrambling Parallel Build Logs. That article inspired David Boyce to submit a patch to GNU make in 2011 which was the first iteration of the –output-sync feature.

GNU Guile integration

The next major addition in GNU make 4.0 is GNU Guile integration, which makes it possible to invoke Guile code directly from within a makefile, via a new $(guile) built-in function. Naturally, since Guile is a general-purpose, high-level programming language, this allows for far more sophisticated computation from directly within your makefiles. Here’s an example that uses Guile to compute Fibonacci numbers — contrast with my Fibonacci in pure GNU make:

1
2
3
4
5
6
7
8
9
10
11
define FIBDEF
(define (fibonacci x)
(if (< x 2)
x
(+ (fibonacci (- x 1)) (fibonacci (- x 2)))))
#f
endef
$(guile $(FIBDEF))
%:
@echo $(guile (fibonacci $@))

Obviously, having a more expressive programming language available in makefiles will make it possible to do a great deal more with your make-based builds than ever before. Unfortunately I think the GNU make maintainers made a couple mistakes with this feature which will limit its use in practice. First, Guile was a poor choice. Although it’s a perfectly capable programming language, it’s not well-known or in wide use compared to other languages that they might have chosen — although you can find Scheme on the TIOBE Index, Guile itself doesn’t show up, and even though it is the official extension language of the GNU project, fewer than 25 of the GNU project’s 350 packages use Guile. If the intent was to embed a language that would be usable by a large number of developers, Python seems like the no-brainer option. Barring that for any reason, Lua seems to be the de facto standard for embedded programming languages thanks to its small footprint and short learning curve. Guile is just some weird also-ran.

Second, the make/Guile integration seem a bit rough. The difficulty arises from the fact that Guile has a rich type system, while make does not — everything in make is a string. Consequently, to return values from Guile code to make they must be converted to a string representation. For many data types — numbers, symbols and of course strings themselves — the conversion is obvious, and reversible. But for some data types, this integration does a lossy conversion which makes it impossible to recover the original value. Specifically, the Guile value for false, #f, is converted to an empty string, rendering it indistinguishable from an actual empty string return value. In addition, nested lists are flattened, so that (a b (c d) e) becomes a b c d e. Of course, depending on how you intend to use the data, each of these may be the right conversion. But that choice should be left to the user, so that we can retain the additional information if desired.

Loadable objects

The last big new feature in GNU make 4.0 is the ability to dynamically load binary objects into GNU make at runtime. In a nutshell, that load of jargon means that it’s possible for you to add your own “built-in” functions to GNU make, without having to modify and recompile GNU make itself. For example, you might implement an $(md5sum) function to compute a checksum, rather than using $(shell md5sum). Since these functions are written in C/C++ they should have excellent performance, and of course they can access the full spectrum of system facilities — file I/O, sockets, pipes, even other third-party libraries. Here’s a simple extension that creates a $(fibonacci) built-in function:

#include <stdio.h>
#include <gnumake.h>

int plugin_is_GPL_compatible;

int fibonacci(int n)
{
    if (n < 2) {
        return n;
    }
    return fibonacci(n - 1) + fibonacci(n - 2);
}

char *gm_fibonacci(const char *nm, unsigned int argc, char **argv)
{
    char *buf  = gmk_alloc(33);
    snprintf(buf, 32, "%d", fibonacci(atoi(argv[0])));
    return buf;
}

int fibonacci_gmk_setup ()
{
    gmk_add_function ("fibonacci", gm_fibonacci, 1, 1, 0);
    return 1;
}

And here’s how you would use it in a makefile:

1
2
3
load ./fibonacci.so
%:
@echo $(fibonacci $@)

I’m really excited about this feature. People have been asking for additional built-in functions for years — to handle arithmetic, file I/O, and other tasks — but for whatever reason the maintainers have been slow to respond. In theory, loadable modules will enable people to expand the set of built-in functions without requiring the approval or involvement of the core team. That’s great! I only wish that the maintainers had been more responsive when we invited them to collaborate on the design, so we might have come up with a design that would work with both GNU make and Electric Make, so that extension authors need only write one version of their code. Ah well — que sera, sera.

Other features

In addition to the major feature described above there are several other enhancements worth mentioning here:

  • ::= assignment, equivalent to := assignment, added for POSIX compatibility.
  • != assignment, which is basically a substitute for $(shell), added for BSD compatibility.
  • –trace command-line option, which causes GNU make to print commnds before execution, even if they would normally be suppressed by the @ prefix.
  • $(file …) built-in function, for writing text to a file.
  • GNU make development migrated from CVS to git.

You can find the full list of updates in the NEWS file in the GNU make source tree.

Looking ahead

It’s great to see continued innovation in GNU make. Remember, this is a tool that’s now 25 years old. How much of the software you wrote 25 years ago is still in use and still in active development? I’d like to offer a heartfelt congratulations to Paul Smith and the rest of the GNU make team for their accomplishments. I look forward to seeing what comes next!

post

What’s new in ElectricAccelerator 7.0

ElectricAccelerator 7.0 was officially released a couple weeks ago now, on April 12, 2013. This version, our 26th feature release in 11 years, incorporates performance features that are truly nothing less than revolutionary: dependency optimization and parse avoidance. To my knowledge, no other build tool in the world has comparable functionality, is working on comparable functionality or is even capable of adding such functionality. Together these features have enabled us to dramatically cut Android 4.1.1 (Jelly Bean) build times, compared to Accelerator 6.2:

  • Full, from-scratch builds are 35% faster
  • “No touch” incremental builds are an astonishing 89% faster

In fact, even on this highly optimized, parallel-friendly build, Accelerator 7.0 is faster than GNU make, on the same number of cores. On a 48-core system gmake -j 48 builds Android 4.1.1 in 15 minutes. Accelerator 7.0 on the same system? 12 minutes, 21 seconds: 17.5% faster.

Read on for more information about the key new features in ElectricAccelerator 7.0.

Dependency optimization: use only what you need

Dependency optimization is a new application of the data that is used to power Accelerator’s conflict detection and correction features. But where conflict detection is all about finding missing dependencies in makefiles, dependency optimization is focused on finding surplus dependencies, which drag down build performance by needlessly limiting parallelism. Here’s a simple example:

1
2
3
4
5
foo: bar
@echo abc > foo && sleep 10
bar:
@echo def > bar && sleep 10

In this makefile you can easily see that the dependency between foo and bar is superfluous. Unfortunately GNU make is shackled by the dependencies specified in the makefile and is thus obliged to run the two jobs serially. In contrast, with dependency optimization enabled emake can detect this inefficiency and ignore the unnecessary dependency — so foo and bar will run in parallel.

Obviously you could trivially fix this simple makefile, but in real-world builds that may be difficult or impossible to do manually. For example, in the Android 4.1.1 build, there are about 2 million explicitly specified dependencies in the makefiles. For a typical variant build, only about 300 thousand are really required: over 85% of the dependencies are unnecessary. And that's in the Android build, which is regarded by some as a paragon of parallel-build cleanliness — imagine the opportunities for improvement in builds that don't have Google's resources to devote to the problem.

To enable dependency optimization in your builds, add --emake-optimize-deps=1 to your emake command-line. The first build with that option enabled will "learn" the characteristics of the build; the second and subsequent builds will use that information to improve performance.

Parse avoidance: the fastest job is the one you don't have to do

A common complaint with large build systems is incremental build performance — specifically, the long lag between the time that the user invokes make and the time that make starts the first compile. Some have even gone so far as to invent entirely new build tools with a specific focus on this problem. Parse avoidance delivers similar performance gains without requiring the painful (perhaps impossible!) conversion to a new build tool. For example, a "no touch" incremental build of Android 4.1.1 takes close to 5 minutes with Accelerator 6.2, but only about 30 seconds with Accelerator 7.0.

On complex builds, a large portion of the lag comes from parsing makefiles. The net result of that effort is a dependency graph annotated with targets and the commands needed to generate them. The core idea underpinning parse avoidance is the realization that we need not redo that work on every build. Most of the time, the dependency graph, et al, is unchanged from one build to the next. Why not cache the result of the parse and reuse it in the next build? So that's what we did.

To enable parse avoidance in your builds, add --emake-parse-avoidance=1 to your emake command-line. The first build with that option will generate a parse result to add to the cache; the second and subsequent builds will reload the cached result in lieu of reparsing the makefiles from scratch.

Other goodies

In addition to the marquee features, Accelerator 7.0 includes dozens of other improvements. Here are some of the highlights:

  • Limited GNU make 3.82 support. emake now allows assignment modifiers (like ?=, etc.) on define-style variable definitions, when --emake-emulation=gmake3.82
  • Order-only prerequisites in NMAKE emulation mode. GNU make introduced the concept of order-only prerequisites in 3.80. With this release we've extended our NMAKE emulation with the same concept.
  • Enhancements to electrify. The biggest improvement is the ability to match full command-lines to decide whether or not a particular command should be executed remotely (Linux only). Previously, electrify could only match against the process name.

What's next?

In my opinion, Accelerator 7.0 is the most exciting release we've put out in close to two years, with truly ground-breaking new functionality and performance improvements. It's not often that you can legitimately claim double-digit percentage performance improvements in a mature product. I'm incredibly proud of my team for this accomplishment.

With that said: there's always room to do more. We're already gearing up for the next release. The exact release content is not yet nailed down, but on the short list of candidates is a new job scheduler, to enable still better performance; "buddy cluster" facilities, to allow the use of Accelerator without requiring dedicated hardware; and possibly some form of acceleration for Maven-based builds. Let's go!

post

#pragma multi and rules with multiple outputs in GNU make

Recently we released ElectricAccelerator 6.2, which introduced a new bit of makefile syntax — #pragma multi — which allows you to indicate that a single rule produces multiple outputs. Although this is a relatively minor enhancement, I’m really excited about it because this it represents a new direction for emake development: instead of waiting for the GNU make project to add syntactic features and then following some time later with our emulation, we’re adding features that GNU make doesn’t have — and hopefully they will have to follow us for a change!

Unfortunately I haven’t done a good job articulating the value of #pragma multi. Unless you’re a pretty hardcore makefile developer, you probably look at this and think, “So what?” So let’s take a look at the problem that #pragma multi solves, and why #pragma multi matters.

Rules with multiple outputs in GNU make

The problem we set out to solve is simply stated: how can you specify to GNU make that one rule produces two or more output files? The obvious — but wrong — answer is the following:

1
2
foo bar: baz
touch foo bar

Unfortunately, this fragment is interpreted by GNU make as declaring two rules, one for foo and one for bar — it just so happens that the command for each rule creates both files. That will do more-or-less the right thing if you run a from-scratch, serial build:

$ gmake foo bar
touch foo bar
gmake: `bar' is up to date.

By the time GNU make goes to update bar, it’s already up-to-date thanks to the execution of the rule for foo. But look what happens when you run this same build in parallel:

$ gmake -j 2 foo bar
touch foo bar
touch foo bar

Oops! — the files were updated twice. No big deal in this trivial example, but it’s not hard to imagine a build where running the commands to update a file twice would produce bogus output, particularly if those updates could be happening simultaneously.

So what’s a makefile developer to do? In standard GNU make syntax, there’s only one truly correct way to create a rule with multiple outputs: pattern rules:

1
2
%.x %.y: %.in
touch $*.x $*.y

In contrast with explicit rules, GNU make interprets this fragment as declaring a single rule that produces two output files. Sounds perfect, but there’s a significant limitation to this solution: all of the output files must share a common sequence in the filenames (called the stem in GNU make parlance). That is, if your rule produces foo.x and foo.y, then pattern rules will work for you because the outputs both have foo in their names.

If your output files do not adhere to that naming limitation, then pattern rules can’t help you. In that case, you’re pretty much out of luck: there is no way to correctly indicate to GNU make that a single rule produces multiple output files. There are a variety of hacks you can try to coerce GNU make to behave properly, but each has its own limitations. The most common is to nominate one of the targets as the “primary”, and declare that the others depend on that target:

1
2
3
bar: foo
foo: baz
touch foo bar

Watch what happens when you run this build serially from scratch:

$ gmake foo bar
touch foo bar
gmake: Nothing to be done for `bar'.

Not bad, other than the odd “nothing to be done” message. At least the files weren’t generated twice. How about running it in parallel, from scratch?

$ gmake -j 2 foo bar
touch foo bar
gmake: Nothing to be done for `bar'.

Awesome! We still have the odd “nothing to be done” message, but just as in the serial build, the command was only invoked one time. Problem solved? Nope. What happens in an incremental build? If you’re lucky, GNU make happens to do the right thing and regenerate the files. But in one incremental build scenario, GNU make utterly fails to do the right thing. Check out what happens if the secondary output is deleted, but the primary is not:

$ rm -f bar && gmake foo bar
gmake: `foo' is up to date.
gmake: Nothing to be done for `bar'.

That’s right: GNU make failed to regenerate bar. If you’re very familiar with the build system, you might realize what had happened and think to either delete foo as well, or touch baz so that foo appears out-of-date (which would cause the next run to regenerate both outputs). But more likely at this point you just throw your hands up and do a full clean rebuild.

Note that all of the alternatives in vanilla GNU make have similar deficiencies. This kind of nonsense is why incremental builds have a bad reputation. This is why we created #pragma multi.

Rules with multiple outputs in Electric Make

By default Electric Make emulates GNU make, so it inherits all of GNU make’s limitations regarding rules with multiple outputs — with one critical exception. Even when running a build in parallel, Electric Make ensures that the output matches that produced by a serial GNU make build, which means that even the original, naive attempt will “work” for full builds regardless of whether the build is serial (single agent) or parallel (multiple agents).

Given that foundation, why did we bother with #pragma multi? There are a couple reasons:

  1. Correct incremental builds: with #pragma multi you can correctly articulate the relationships between inputs and outputs and thus ensure that all the outputs get rebuilt in incremental builds, rather than using kludges and hoping for the best.
  2. Out-of-the-box performance: although Electric Make guarantees correct output of the build, if you don’t have an up-to-date history file for the build you may waste time and compute resources running commands that don’t need to be run (work that will eventually be discarded when Electric Make detects the error). In the examples shown here the cost is negligible, but in real builds it could be significant.

Using #pragma multi is easy: just add the directive before the rule that will generate multiple outputs:

1
2
3
#pragma multi
foo bar: baz
touch foo bar

Watch what happens when this makefile is executed with Electric Make:

$ emake foo bar
touch foo bar

Note that there is no odd “is up to date” or “nothing to be done” message for bar — because Electric Make understands that both outputs are created by a single rule. Let’s verify that the build works as desired in the tricky incremental case that foiled GNU make — deleting bar without deleting foo:

$ rm -f bar && emake foo bar
touch foo bar

As expected, both outputs are regenerated: even though foo existed, bar did not, so the commands were executed.

Summary: rules with multiple outputs

Let’s do a quick review of the strategies for creating rules with multiple outputs. For simplicity we can group them into three categories:

  • #pragma multi
  • The naive approach, which does not actually create a single rule with multiple outputs at all.
  • Any of the various hacks for approximating rules with multiple outputs.

Here’s how each strategy fares across a variety of build modes:

Electric Make GNU make
Full (serial) Full (parallel) Incremental Full (serial) Full (parallel) Incremental
#pragma multi N/A
Naive
Hacks


The table paints a grim picture for GNU make: there is no way to implement rules with multiple outputs using standard GNU make which reliably gives both correct results and good performance across all types of builds. The naive approach generates the output files correctly in serial builds, but may fail in parallel builds. The various hacks work for full builds, but may fail in incremental builds. Even in cases where the output files are generated correctly, the build is marred by spurious “is up to date” or “nothing to be done for” messages — which is why most of the entries in the GNU make side are yellow rather than green.

In contrast, #pragma multi allows you to correctly generate multiple outputs from a single rule, for both full and incremental builds, in serial and in parallel. The naive approach also “works” with Electric Make, in that it will produce correct output files, but like GNU make the build is cluttered with spurious warnings. And, unless you have a good history file, the naive approach can trigger conflicts which may negatively impact build performance. Finally, despite its sophisticated conflict detection and correction smarts, even Electric Make cannot ensure correct incremental builds when you’ve implemented one of the multiple output hacks.

So there you have it. This is why we created #pragma multi: without it, there’s just no way to get the job done quickly and reliably. You should give ElectricAccelerator a try.

try_eade_button2

post

What’s new in ElectricAccelerator 6.2?

We released ElectricAccelerator 6.2 a couples weeks ago, our 25th feature release. 6.2 was a quick interim release primarily intended to address a couple long-standing stability issues, but we managed to squeeze in some really interesting feature enhancements as well. Here’s what’s new:

Rules with multiple outputs? Yeah, we can do that.

Every now and then, makefile authors need to write a single makefile rule that produces more than one output file, to accomodate tools that don’t fit gmake’s rigid one-command-one-output model. The classic example is bison, which produces both a C file and a header file from a single invocation of the tool.

Unfortunately in regular gmake the only way to write a rule with multiple outputs is to use a pattern rule. That’s great — if your needs happens to dovetail with the caveats and limitations of pattern rules (chiefly, that the output files share a common base name). If not, the answer has been basically that you’re out of luck. There are a variety of kludges that approximate the behavior, but despite numerous requests over the last decade (1, 2, 3, 4, 5, 6, 7, 8) and at least one patch implementing the feature, GNU make (as of 3.82) still has no way to create an explicit rule that produces multiple outputs.

When it comes to enhancements to the fundamental operation of GNU make, we’ve historically let the GNU make team take the lead, rather than risk introducing potentially incompatible changes. But after so many years it seems clear that this feature is not going to show up in GNU make — so we decided to forge ahead on our own. Enter #pragma multi:

1
2
3
#pragma multi
foo bar:
@touch foo bar

GNU make interprets this construct as two independent rules, one for foo and one for bar, which happen to each create both files. Thanks to the #pragma multi designation, Electric Make will interpret this as a single rule which produces both foo and bar. Using a #pragma to flag the rule is perfect, because it sidesteps any questions about syntax changes. And since #pragma starts with a #, GNU make will treat it as a comment, so this makefile will still be usable with GNU make — you’ll just get correct behavior and better performance with Electric Make.

New platforms and a faster installer

Accelerator 6.2 adds support for Linux kernels up to 3.5.x, which means that Accelerator now supports the following platforms:

  • Ubuntu 11.10
  • Ubuntu 12.04
  • SUSE Linux Enterprise Server 11 SP2

In addition, Accelerator 6.2 is expected to work correctly on both Ubuntu 12.10 and Windows 8, although we cannot officially claim support for those platforms since they were themselves not finalized at the time Accelerator 6.2 was released. This release also incorporates enhancements to the Linux installer which make the installation process about 25% faster compared to previous releases.

A complete list of platforms supported by ElectricAccelerator 6.2 can be found in the Electric Cloud Knowledge Base.

Key robustness improvements

Raise your hand if you’ve ever seen this error on your Linux Accelerator agent hosts:

unable to unmount EFS at “/some/path”: EBUSY

That error shows up sometimes when your build starts background processes — kind of a distributed build anti-pattern itself, but unfortunately it’s not always something you can control thanks to some third-party toolchains. Or rather, that error used to show up sometimes, because in Accelerator 6.2 we’ve bulletproofed the system against such rogue background processes, so that error is a thing of the past (nota bene: this enhancement is not available on Solaris).

In addition, we bulletproofed the system against external processes (any process running on an agent host which is not part of your build) accessing the EFS. In certain rare circumstances, such accesses could lead to agent host instability.

What’s next?

With 6.2 out the door we’ve finally got bandwidth to work on 7.0, which will focus on some very exciting performance improvements, especially for incremental builds. It’s a little bit too early to share any of the preliminary results we’re seeing, but rest assured — if you thought Accelerator was fast before, well… you ain’t seen nothing yet! Stay tuned for more information.

ElectricAccelerator 6.2 is available immediately. If you are already an Accelerator user, contact support@electric-cloud.com to upgrade. If you are not currently a user, you can download a free evaluation version of ElectricAccelerator Developer Edition, or contact sales@electric-cloud.com.

post

ElectricAccelerator and the Case of the Confounding Conflict

A user recently asked me why ElectricAccelerator reports a conflict in this simple build, when executed without a history file from a previous run:

1
2
3
4
5
6
7
all: foo symlink_to_foo
foo:
@sleep 2 && echo hello world > foo
symlink_to_foo:
@ln -s foo symlink_to_foo

Specifically, if you have at least two agents, emake will report a conflict between symlink_to_foo and foo, indicating that symlink_to_foo somehow read or otherwise accessed foo during execution! But ln does not access the target of a symlink when creating the symlink — in fact, you can even create a symlink to a non-existent file if you like. It seems obvious that there should be no conflict. What’s going on?

To understand why this conflict occurs, you have to wrap your head around two things. First, there’s more going on during a gmake-driven build than just the commands you see gmake invoke. That causes the usage that provokes the conflict. Second, emake considers a serial gmake build the “gold standard” — if a serial gmake build produces a particular result, so too must emake. That’s why the additional usage must result in a conflict.

In this case, the usage that triggers the conflict comes from management of the gmake stat cache. This is a gmake feature that was added to improve performance by avoiding redundant calls to stat() — once you’ve stat()‘d a file once, you don’t need to do it again. Unless the file is changed of course, which happens quite a lot during a build. To keep the stat cache up-to-date as the build progresses, gmake re-stat()‘s each target after it finishes running the commands for the target. So after the commands for symlink_to_foo complete, gmake stat()‘s symlink_to_foo again, using the standard stat() system call, which follows the symlink (in contrast to lstat(), which does not follow the symlink). That means gmake will actually cache the attributes of foo for symlink_to_foo.

To ensure compatibility with gmake, emake has to do the same. In Accelerator parlance, that means we get read usage on symlink_to_foo (because you have to read the symlink itself to determine the target of the symlink), and lookup usage on foo. The lookup on foo causes the conflict, because, of course, you will get a different result if you lookup foo before the job that creates it than you would get if you do the lookup after that job. Before the job, you’ll find that foo does not exist, obviously; after, you’ll find that it does.

But what difference does that make, really? In truth, if there’s no detectable difference in behavior, then it doesn’t matter at all. And in the example build there is no detectable difference — the build output is the same regardless of when exactly you stat() symlink_to_foo relative to when foo is created. But with a small modification to the build, it is suddenly becomes possible to see the impact:

1
2
3
4
5
6
7
8
9
10
all: foo symlink_to_foo reader
foo:
@sleep 2 && echo hello world > foo
symlink_to_foo:
@ln -s foo symlink_to_foo
reader: foo symlink_to_foo
@echo newer prereqs are: $?

Compare the output when this build is run serially with the output when the build is run in parallel — and note that I’m using gmake, so you can be certain I’m not trying to trick you with some peculiarity of emake’s implementation:

You can plainly see the difference: in the parallel build gmake stat()‘s symlink_to_foo before foo exists, so the stat cache records symlink_to_foo as non-existent. Then when gmake generates the value of $? for reader, symlink_to_foo is excluded, because non-existent files are never considered newer than existing files. In the serial build, gmake stat()‘s symlink_to_foo after foo has been created, so the stat cache indicates that symlink_to_foo exists and is newer than reader, so it is included in $?.

Hopefully you see now both what causes the conflict, and why it is necessary. The conflict occurs because of lookup usage generated when updating the stat cache. The conflict is necessary to ensure that the build output matches that produced by a serial gmake — the “gold standard” for build correctness. If no conflict is declared, there is the possibility for a detectable difference in build output compared to serial gmake.

However, you might be thinking that although it makes sense to treat this as a conflict in the general case, isn’t it possible to do something smarter in this specific case? After all, the orignal example build does not use $?, and without that there isn’t any detectable difference in the build output. So why not skip the conflict?

The answer is simple, if a bit disappointing. In theory it may be possible to elide the conflict by checking to see if the symlink is used by a later job in a manner that would produce a detectable difference (for example, by scanning the commands for subsequent targets for references to $?), but in reality the logistics of that check are daunting, and I’m not confident that we could guarantee correct behavior in all cases.

Fortunately all is not lost. If you wish to avoid this conflict, you have several options:

  1. Use a good history file from a previous build. This is the most obvious solution. You’ll only get conflicts if you run without a history file.
  2. Add an explicit dependency. If you make foo an explicit prereq of symlink_to_foo, then you will avoid the conflict. Here’s how that would look:
    1
    symlink_to_foo: foo
  3. Change the serial order. If you reorder the makefile so that symlink_to_foo has an earlier serial order than foo you will avoid the conflict. That just requires a reordering of the prereqs of all:
    1
    all: symlink_to_foo foo

Any one of these will eliminate the conflict from your build, and you’ll enjoy fast and correct parallel builds.

Case closed.

post

Makefile hacks: automatically split long command lines

If you’ve worked on a large build system you’ve probably bumped into this error, or one like this:

gmake: execvp: /bin/sh: Argument list too long

This error means the length of some command-line in your makefile has grown past the system limit, which is typically in the 32 to 256 kilobyte range. It’s surprisingly easy to hit that limit. You start with a small list of object files to be linked together. Over time you add more, and the command-line gets a little longer. Add a few more and it gets longer still. Before you know it you have a monster command-line and your build starts failing.

The solution to this problem is simple: split the long command-line into several shorter command-lines. For example, ar r libraries/lib.a objects/foo.o objects/bar.o objects/baz.o objects/boo.o objects/bang.o becomes something like this:

ar r libraries/lib.a objects/foo.o objects/bar.o
ar r libraries/lib.a objects/baz.o objects/boo.o
ar r libraries/lib.a objects/bang.o

Simple in theory, but tedious to do by hand. And doing it manually is like putting a ticking time-bomb into your makefile — it’s only a matter of time before your build grows enough that you have to go through this exercise again.

I recently ran across a clever solution that exploits the $(eval) function in GNU make to split long command-lines automatically, eliminating the tedium and the time-bomb. After I show you the solution, I’ll explain it piece-by-piece.

The max_args function

The solution is a user-defined function called max_args that splits long command-lines into equal-length chunks:

1
2
3
4
5
6
7
8
9
define max_args
$(eval _args:=)
$(foreach obj,$3,$(eval _args+=$(obj))$(if $(word $2,$(_args)),$1$(_args)$(EOL)$(eval _args:=)))
$(if $(_args),$1$(_args))
endef
define EOL
endef

And an example of its use:

1
2
3
OBJS:=a b c d e f g h
all:
@$(call max_args,echo,2,$(OBJS))

The max_args function takes three parameters: the base command-line, the number of arguments per “chunk”, and the complete list of arguments. It expands to a series of command-lines — one for each chunk of arguments.

The trick behind max_args is the use of $(eval) to update a variable as a side-effect of gmake’s regular variable expansion activity. If you’re not familiar with gmake variable expansion, here’s a quick rundown: when gmake finds a variable or function reference, like $(something), it replace the entire reference with an expanded value. In the case of a variable that’s just the value of the variable. Most variables in gmake are recursive which means that if the variable value itself contains embedded variable references, those will be expanded as well, recursively. In the case of a function, gmake evaluates the function, and replaces the reference with the computed value.

The meat of max_args is on line 3. It starts with the $(foreach) function, which evaluates its third argument, the body of the loop, once for each word in its second argument — in this case, the list of objects passed in the call to max_args.

In max_args, the loop body has two components. The first is a call to $(eval), which simply appends the current value of the loop variable to an accumulator called _args.

The second component of the loop body uses $(if) and $(word) to check the length of _args. The $(word) function returns the nth word from a list, or an empty string if there are fewer than n words in the list. The $(if) function expands its second argument (the then clause) only if its first argument (the condition) expands to a non-empty string, so together these functions check if _args has the desired number of words, and if so the then clause of the $(if) is expanded.

The then clause of this $(if) has two components. The first constructs a completed command-line by concatenating the base command-line, here given by $1, the first argument to the original max_args call; the accumulated arguments; and a newline character. Thanks to the rules of gmake expansion, this command-line is added to the overall expansion result for the max_args function. The second part of the then clause uses $(eval) to reset the accumulator

If the chunk size does not evenly divide the number of arguments, the stragglers are emitted in a final command-line on the last line of max_args.

Limitations

max_args is handy but it has one significant limitation: command-line length limits are based on the number of bytes in the command-line, not the number of words, in it. Unfortunately, gmake has no built-in way to count the number of characters in a string. gmake does provide the $(words) built-in, so that’s what max_args uses. That just means that to use it effectively you have to take a guess at the number of arguments that will fit in a single command-line, for example by dividing the length limit by the average number of characters in each argument, then subtracting some to allow some buffer for outliers.

post

How ElectricMake guarantees reliable parallel builds

Parallel execution is a popular technique for reducing software build length, and for good reason. These days, multi-core computers have become standard — even my laptop has four cores — so there’s horsepower to spare. And it’s “falling over easy” to implement: just slap a “-j” onto your make command-line, sit back and enjoy the benefits of a build that’s 2, 3 or 4 times faster than it used to be. Sounds great!

But then, inevitably, invariably, you run into parallel build problems: incomplete dependencies in your makefiles, tools that don’t adequately uniquify their temp file names, and any of a host of other things that introduce race conditions into your parallel build. Sometimes everything works great, and you get a nice, fast, correct build. Other times, your build blows up in spectacular fashion. And then there are the builds that appear to succeed, but in fact generate bogus outputs, because some command ran too early and used files generated in a previous instead of the current build.

This is precisely the problem ElectricMake was created to solve — it gives you fast, reliable parallel builds, regardless of how (im)perfect your makefiles and tools are. If the build works serially, it will work with ElectricMake, but faster. If you’ve worked with parallel builds for any length of time, you can probably appreciate the benefit of that guarantee.

But maybe you haven’t had much experience with parallel builds yourself, or maybe you have but like many people, you don’t believe this problem can actually be solved. In that case, perhaps some data will persuade you. Here’s a sample of open source projects that don’t build reliably in parallel using gmake:

For each, I did several trials with gmake at various levels of parallelism, to determine how frequently the parallel build fails. Then, I did the same build several times with emake and again measured the success rate. Here you can see the classic problem of parallel builds with gmake — works great at low levels of parallelism (or serially, the “degenerate” case of parallel!), but as you ratchet up the parallelism, the build gets less and less reliable. At the same time, you can see that emake is rock solid regardless of how much parallelism you use:

Parallel build success rates

The prize for this reliability? Faster builds, because you can safely exploit more parallelism. Where gmake becomes unreliable with -j 3 or -j 4, emake is reliable with any number of parallel jobs.

How ElectricMake guarantees reliable parallel builds

The technology that enables emake to ensure reliable parallel builds is called conflict detection. Although there are many nuances to its implementation, the concept is simple. First, track every modification to every file accessed by the build as a distinct version of the file. Then, for each job run during the build, track the files used and verify that the job accessed the same versions it would have had the build run serially. Any mismatch is considered a conflict. The offending job is discarded along with any filesystem modifications it made, and the job is rerun to obtain the correct result.

The versioned file system

At the heart of the conflict detection system is a data structure known as the versioned file system, in which emake records every version of every file used over the lifetime of the build. A version is added to the data structure every time a file is modified, whether that be a change to the content of the file, a change in the attributes (like ownership or access permissions), or the deletion of the file. In addition to recording file state, a version records the job which created it. For example, here’s what the version chain looks like for a file “foo” which initially does not exist, then is created by job A with contents “abc”, deleted by job C, and recreated by job E with contents “123″:

Jobs

Jobs are the basic unit of work in emake. A job represents all the commands that must be run in order to build a single makefile target. In addition, every job has a serial order — the order in which the job would have run, had the build been run serially. The serial order of a job is dictated by the dependencies and structure of the makefiles that make up the build. Note that for a given build, the serial order is deterministic and unambiguous — even if the dependencies are incomplete, there is exactly one order for the jobs when the build is run serially.

With the serial order for every job in hand, deciding which file version should be used by a given job is simple: just find the version created by the job with the greatest serial order that precedes the job accessing the file. For example, using the version chain above (and assuming that the jobs’ names reflect their serial order), job B should use the version created by job A, while job D should see the file as non-existent, thanks to the version created by job C.

A job enters the completed state once all of its commands have been executed. At that point, any filesystem updates created by the job are integrated into the versioned filesystem, but, critically, they are not pushed to the real filesystem — that gives emake the ability to discard the updates if the job is later found to have conflicts.

Each job runs against a virtual filesystem called the Electric File System (EFS), rather than the real filesystem. The EFS serves several important functions: first, it is the means by which emake tracks file accesses. Second, it enables commands in the build to access file versions that exist in the versioned filesystem, but not yet on the real filesystem. Finally, it isolates simultaneously running jobs from one another, eliminating the possibility of crosstalk between commands.

Detecting conflicts

With all the data emake collects — every version of every file, and the relationship between every job — the actual conflict check is simple: for each file accessed by a job, compare the actual version to the serial version. The actual version is the version that was actually used when the job ran; the serial version is the version that would have been used, if the build had been run serially. For example, consider a job B which attempts to access a file foo. At the time that B runs, the version chain for foo looks like this:

Given that state, B will use the initial version of foo — there is no other option. The initial version is therefore the actual version used by job B. Later, job A creates a new version of foo:

Since job A precedes job B in serial order, the version created by job A is the correct serial version for job B. Therefore, job B has a conflict.

If a job is determined to be free of conflicts, the job is committed, meaning any filesystem updates are at last applied to the real filesystem. Any job that has a conflict is reverted — all versions created by the job are marked invalid, so subsequent jobs will not use them. The conflict job is then rerun in order to generate the correct result. The rerun job is committed immediately upon completion.

Conflict checks are carried out by a dedicated thread which inspects each job in strict serial order. That guarantees that a job is not checked for conflicts until after every job that precedes it in serial order has been successfully verified free of conflicts — without this guarantee, we can’t be sure that we know the correct serial version for files accessed by the job. Similarly, this ensures that the rerun job, if any, will use the correct serial versions for all files — so the rerun job is sure to be conflict free.

ElectricMake: reliable parallel builds

Conceptually, conflict detection is simple — keep track of every version of every file used in a build, then verify that each job used the correct version — but there are many details to its implementation. And in this article I’ve only covered the most basic implementation of conflict detection — after many years of experience and thousands of real-world builds we’ve tweaked the implementation, relaxing the simple definition of a conflict in specific cases in order to improve performance.

The benefit of conflict detection is simple too: reliable parallel builds, which in turn means shorter build times, regardless of how imperfect your makefiles are and how parallel-unsafe your toolchain may be.

post

Why is SCons so slow?

UPDATE: If you’re coming from Why SCons is not slow, you should read my response

A while back, I did a series of posts exploring the performance of SCons on builds of various sizes. The results were dismal: SCons demonstrated a classic O(n2) growth in runtime, meaning that the length of the build grew in proportion to the square of the number of files in the build, rather than linearly as one would hope. Naturally, that investigation and its results provoked a great deal of discussion at the time and since. Typically, SCons advocates fall back on one particular argument: “Sure, SCons may be slow,” they say, “but that’s the price you pay for a correct build.” Recently, Eric S. Raymond wrote an article espousing this same fundamental argument, with the addition of some algorithmic analysis intended to prove mathematically that a correct build, regardless of the build tool, must necessarily exhibit O(n2) behavior — a clever bit of circular logic, because it implies that any build tool that does not have such abyssmal performance must not produce correct builds!

Naturally, after spending nearly a decade developing a high-performance replacement for GNU make, I couldn’t let that statement stand. This post is probably going to be on the long side, so here’s the tl;dr summary:

  • You can guarantee correct builds with make, provided you follow best practices.
  • The worst-case runtime of any build tool if, of course, O(n2), but most, if not all, builds can be handled in O(n) time, without sacrificing correctness.
  • SCons’ performance problem is caused by design and implementation decisions in SCons, not some pathology of build structure.

What is required to ensure a correct build?

One of the fundamental tenents of the pro-SCons mythos is the idea that it is unique in its ability to guarantee correct builds. In reality, SCons is not doing anything particularly special in this regard. It’s true that by virtue of its design SCons makes it easier to get it right, but there’s nothing keeping you from enjoying the same assurances in make.

First: what is a correct build? Simply put, a correct build is one in which everything that ought to be built, is built. Note that by definition, a from-scratch build is correct, since everything is built in that case. So the question of “correct” or “incorrect” is really only relevant in regards to incremental builds.

So, what do we need in order to ensure a correct incremental build? Only three things, actually:

  1. A single, full-build dependency graph.
  2. Complete dependency information for every generated file.
  3. A reliable way to determine if a file is up-to-date relative to its inputs.

What SCons has done is made it more-or-less impossible, by design, to not have these three things. There is no concept like recursive make in the SCons world, so the only option is a single, full-build dependency graph. Likewise, SCons automatically scans input files in several programming languages to find dependency information. Finally, SCons uses MD5 checksums for the up-to-date check, which is a pretty darn reliable way to verify whether a given file needs to be rebuilt.

But the truth is, you can guarantee correct builds with make — you just have to adhere to long-standing best practices for make. First, you have to avoid using recursive make. Then, you need to add automatic dependency generation. The only thing that’s a little tricky is the up-to-date check: make is hardwired to use file timestamps, which can be spoofed, deliberately or accidentally — although to be fair, in most cases, timestamps are perfectly adequate. But even here, there’s a way out. You can use a smarter version of make that has a more sophisticated up-to-date mechanism, like ElectricMake or ClearMake. You can even shoehorn MD5 checksums into GNU make, if you like.

I can’t deny that SCons has made it easier to get correct builds. But the notion that it can’t be done with make is simply absurd.

What is the cost of a correct build?

Now we turn to the question of the cost of ensuring correctness. At its core, any build tool is just a collection of graph algorithms — first contructing the dependency graph, then traversing it to find and update out-of-date files. These algorithms have well-understood complexity, typically given as O(n + e), where n is the number of nodes in the graph, and e is the number of edges. It turns out that e is actually the dominant factor here, since it is at least equal to n, and at worst as much as n2. That means we can simplify the complexity to O(n + n2), or just O(n2).

Does this absolve SCons of its performance sins? Unfortunately it does not, because O(n2) is a worst-case bound — you should only expect O(n2) behavior if you’ve got a build that has dependencies between every pair of files. Think about that for a second. A dependency between every. pair. of. files. Here’s what that would look like in makefile syntax:

all: foo bar foo.c bar.c foo.h bar.h
foo:     bar foo.c bar.c foo.h bar.h
bar:         foo.c bar.c foo.h bar.h
foo.c:             bar.c foo.h bar.h
bar.c:                   foo.h bar.h
foo.h:                         bar.h

It’s ridiculous, right? I don’t know about you, but I’ve certainly never seen a build that does anything even remotely like that. In particular, the builds I used in my benchmarks don’t look like that. Fortunately, those builds are small and simple enough that we can directly count the number of edges in the dependency graph. For example, the smallest build in my tests consisted of:

2,000 C sources
+ 2,004 headers
+ 2,000 objects
+ 101 libraries
+ 100 executables

6,205 total files

So we have about 6,000 nodes in the graph, but how many edges does the graph contain? Lucky for us, SCons will print the complete dependency graph if we invoke it with scons –tree=all:

+-.
  +-SConstruct
  +-d1_0
  | +-d1_0/SConstruct
  | +-d1_0/f00000_sconsbld_d1_0
  | | +-d1_0/f00000_sconsbld_d1_0.o
  | | | +-d1_0/f00000_sconsbld_d1_0.c
  | | | +-d1_0/lup001_sconsbld_d1_0/f00000_sconsbld_d1_0.h
  ...

The raw listing contains about 35,000 lines of text, but that includes duplicates and non-dependency information like filesystem structure. Filter that stuff out and you can see the graph contains only about 12,000 dependencies. That’s a far cry from the 1,800,000 or so you would expect if this truly were a “worst-case” build. It’s clear, in fact, that the number of edges is best described as O(n).

Although I don’t know how (or even if it’s possible) to prove that this is the general case, it does make a certain intuitive sense: far from being strongly-connected, most of the nodes in a build dependency graph have just one or two edges. Each C source file, for example, has just one outgoing edge, to the object file generated from that source. Each object file has just one outgoing edge too, to the library or executable the object is part of. Sure, libraries and headers probably have more edges, since they are used by multiple executables or objects, but the majority of the stuff in the graph is going to fall into the “small handful of edges” category.

Now, here’s the $64,000 question: if the algorithms in a build tool scale in proportion to the number of edges in the dependency graph, and we’ve just shown that the dependency graph in question has O(n) edges, why does SCons use O(n2) time to execute the build?

Why is SCons so slow?

SCons’ O(n2) performance stems from its graph traversal implementation. Essentially, SCons scans the entire dependency graph each time it is looking for a file to update. n scans of a graph with O(n) nodes and edges equals an O(n2) graph traversal. There’s no mystery here. In fact, the SCons developers are clearly aware of this deficiency, as described on their wiki:

It’s worth noting that the Jobs module calls the Taskmaster once for each node to be processed (i.e., it’s O(n)) and the Taskmaster has an amortized performance of O(n) each time it’s called. Thus, the overall time is O(n^2).

But despite recognizing this flaw, they severely misjudged its impact, because they go on to state that it requires a “pathological” dependency graph in order to elicit this worst-case behavior from SCons. As we’ve shown here and in previous posts, even a terribly mundane dependency graph elicits O(n2) behavior from SCons. I shudder to think what SCons would do with a truly pathological dependency graph!

Obviously the next question is: why does SCons do this? That’s not quite as easy for me to explain, as an outside observer. To the best of my understanding, they rescan the graph just in case new dependencies are added to the dependency graph while evaluating a node in the graph — remember, in SCons the commands to update a file are expressed in Python, so they can easily manipulate the dependency graph even while the build is running.

Is it really necessary to rescan the dependency graph over and over? I don’t think so. In fact, make is proof that it is not necessary. I think there are two ways that SCons could address this problem: first, it could adopt GNU make’s convention of partitioning the build into distinct phases, one that updates dependency information, and a second that actually executes the build. In GNU make, that strategy allows for the introduction of new dependency information, while imposing only a one-time O(n) cost for restarting the make process if any new dependencies are found.

Alternatively, SCons could probably be made smarter about when a full rescan is required. Most of the time, even if new dependencies are added to the graph, they are added to the node being evaluated, not to nodes that were already visited. That is, when you scan a source file for implicit dependencies, you find the dependencies for that file not for other files in the build (duh). So most of the time, a full rescan is massive overkill.

The final word…?

Hopefully this is my last post on the subject of SCons performance. It is clear to me that SCons does not scale to large projects, and that the problem stems from design and implementation decisions in SCons, rather than some pathology in the build itself. You can get comparable guarantees of correctness from make, if you’re willing to invest the time to do things the right way. The payoff is a build system that is not only correct but has vastly better performance than SCons as your project grows. Why wouldn’t you want that?

Follow

Get every new post delivered to your Inbox.

%d bloggers like this:
